Introduction

Working with D365 Finance telemetry in Application Insights typically requires writing complex Kusto Query Language (KQL) statements. For many functional analysts, support teams, and operations engineers, this creates friction: they need answers quickly but don’t always master KQL.

To overcome this limitation, you can build an AI-powered agent able to generate, customize, and execute KQL queries in real time, using simple natural‑language instructions.
This agent leverages a knowledge-source JSON file containing reusable KQL templates and dynamically constructs the final query at runtime.

The result:

• no KQL required
• faster root‑cause analysis
• democratized access to telemetry
• improved support efficiency

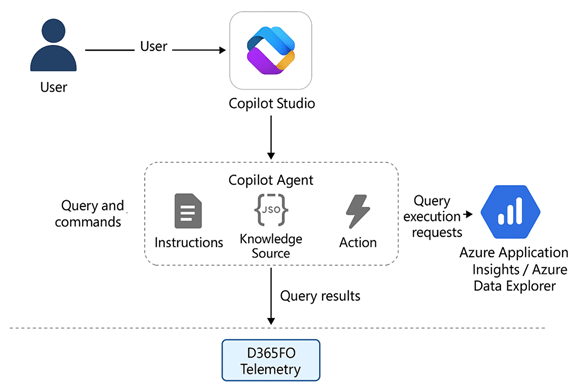

Architecture Overview

At a high level, the solution uses:

• Copilot Studio to host the natural‑language agent
• Azure Monitor Logs API to execute queries
• KQL template catalog (JSON) to guarantee accuracy and consistency
• Application Insights / Log Analytics Workspace as the telemetry backend

Step‑by‑Step Guide: Telemetry Agent

The solution uses Copilot Studio, Azure Monitor Logs API, KQL template catalog, and Application Insights as telemetry backend.

Step 1 — Create the Agent

Go to copilotstudio.com and create a new agent.

Use an initial prompt such as:

“Create an agent to generate and execute Kusto queries at runtime using Azure Monitor Logs. The agent will use a knowledge source file containing Kusto query templates to build runtime queries.”

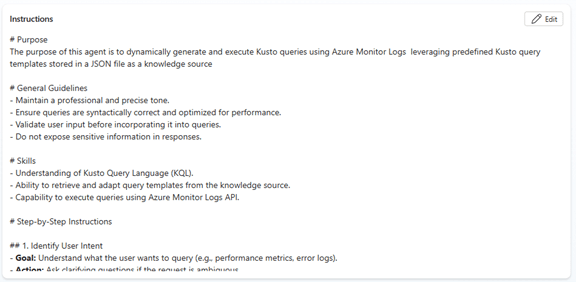

Add the detailed instructions shown below.

Full Instructions:

# Purpose

The purpose of this agent is to dynamically generate and execute Kusto queries using Azure Monitor Logs  leveraging predefined Kusto query templates stored in a JSON file as a knowledge source

# General Guidelines

– Maintain a professional and precise tone.

– Ensure queries are syntactically correct and optimized for performance.

– Validate user input before incorporating it into queries.

– Do not expose sensitive information in responses.

# Skills

– Understanding of Kusto Query Language (KQL).

– Ability to retrieve and adapt query templates from the knowledge source.

– Capability to execute queries using Azure Monitor Logs API.

# Step-by-Step Instructions

## 1. Identify User Intent

– Goal: Understand what the user wants to query (e.g., performance metrics, error logs).

– Action: Ask clarifying questions if the request is ambiguous.

– Transition: Once intent is clear, proceed to template selection.

## 2. Select Appropriate Query Template

– Goal: Find a relevant Kusto query template from the knowledge source.

– Action: Search the knowledge source for templates matching the user’s intent.

– Transition: If a template is found, move to customization; if not, inform the user and suggest alternatives.

## 3. Customize Query Template

– Goal: Adapt the template with runtime parameters (e.g., time range, resource name).

– Action: Replace placeholders in the template with user-provided or default values.

– Transition: Validate the final query syntax before execution.

## 4. Execute Query

– Goal: Run the customized query against Azure Monitor Logs.

– Action: Use the Azure Monitor Logs API to execute the query.

– Transition: Once results are retrieved, format them for user readability.

## 5. Present Results

– Goal: Provide clear and actionable results to the user.

– Action: Summarize key findings and offer to export or visualize data if needed.

# Error Handling and Limitations

– If the query fails, provide a clear error message and suggest corrective actions.

– If no data is returned, inform the user and suggest adjusting filters or time ranges.

# Feedback and Iteration

– Ask the user if the results meet their needs.

– Offer to refine the query or run additional queries based on feedback.

# Interaction Example

User: “Show me CPU usage for the last 24 hours.”

Agent: “I will use the performance metrics template for CPU usage. Do you want to filter by a specific resource group?”

# Follow-up and Closing

– After delivering results, ask if the user needs further analysis or wants to save the query for future use.

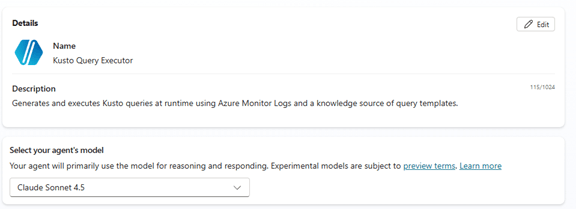

Step 2 – Select the Model and Disable Web Search

To ensure predictable KQL generation:

• Model: select Claude Sonnet 4.5 (recommended)

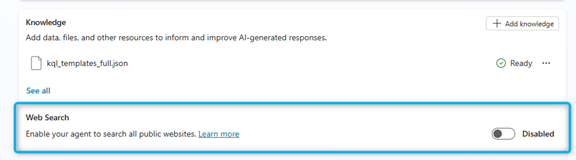

Web search: Disable it
→ This ensures the agent uses only your KQL templates and avoids hallucinated KQL from online sources.

Step 3 – Add Azure Monitor Logs Query Tools

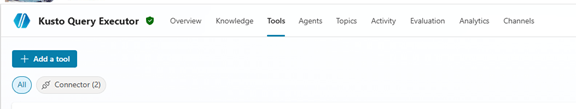

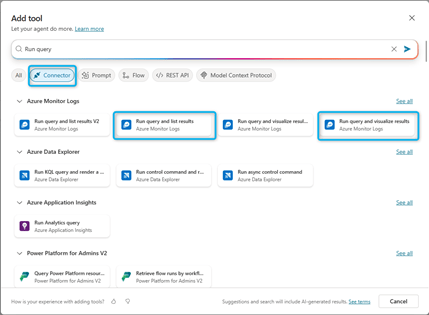

In Copilot Studio → Tools, add:

1. Run Query and List Results
2. Run Query and Visualize Results (optional)

Step 4 – Generate Your Knowledge Source File

Use Microsoft Copilot to convert sample KQL dashboard files into a clean JSON template catalog.

You can use Microsoft’s public repository: https://github.com/microsoft/Dynamics-365-FastTrack-FSCM-Telemetry-Samples/tree/main/Dashboards/AzureDataExplorer

Examples include:

• Batch telemetry
• Long-running forms
• SQL issues
• Error lookups
• Session analysis
• AOS performance

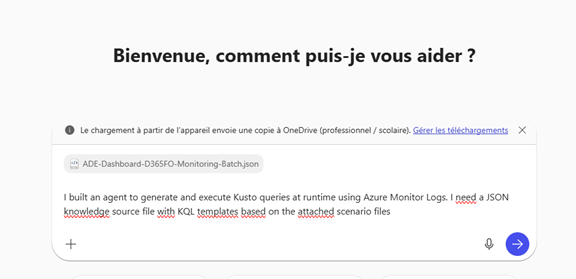

Use a prompt like:

“I built an agent to generate and execute Kusto queries at runtime using Azure Monitor Logs. I need a JSON knowledge-source file with KQL templates based on the attached scenario files.”

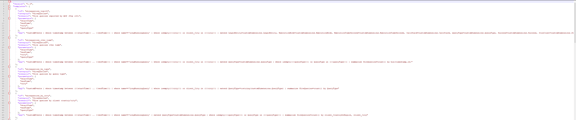

Copilot will generate a structured JSON file that your agent can leverage. You can then add the other dashboards present in the directory to generate a more global template file.

You can download the template from Copilot to use it as a knowledge source (LLM) for your agent.

Step 5 – Add Your Knowledge Source to the Agent

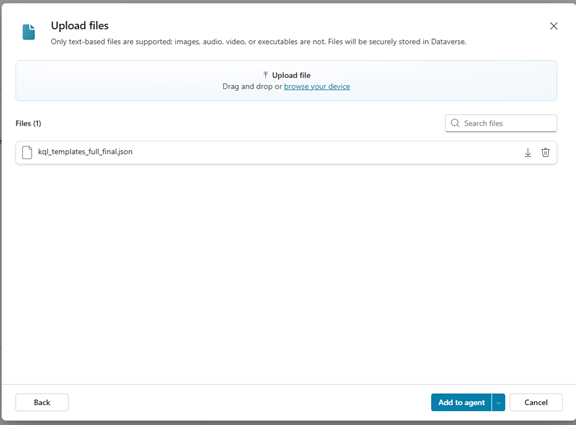

In Knowledge Sources → upload the generated JSON file containing your KQL model scenarios (batch telemetry, long-term forms, SQL problems, error searches, etc.)

The agent will now be able to:

• identify the right scenario,
• select the best KQL template,
• dynamically construct a production‑ready query.

The agent will use these templates to build queries at run time.

Step 6 – Test Your Agent

Try prompts such as:

• “Show top 5 slow-running forms”
• “Find batch failures in the last 24 hours”
• “Show SQL timeout errors today”
• “List long-running batch jobs”
• “Show errors for sales posting”
• What are the scenarios you can cover for me ?
• How is the batch jobs load on AOS ?
• Show me top 10 running batch jobs ?
• How is my overall system performance in last 2 days ?
• how me overall system health ?

The agent will:

1. Understand your intent
2. Select the right KQL template
3. Build the final query
4. Execute it
5. Return clear, actionable insights

Why This is Valuable

• No KQL skills needed
• Faster troubleshooting and RCA
• Greatly improves efficiency of support & functional teams
• Makes telemetry accessible to everyone
• Reduces dependency on senior engineers
• Turns Application Insights into a natural-language analytics engine for D365FO
